問題描述

? 利用快排思想，實現外排。

算法思想

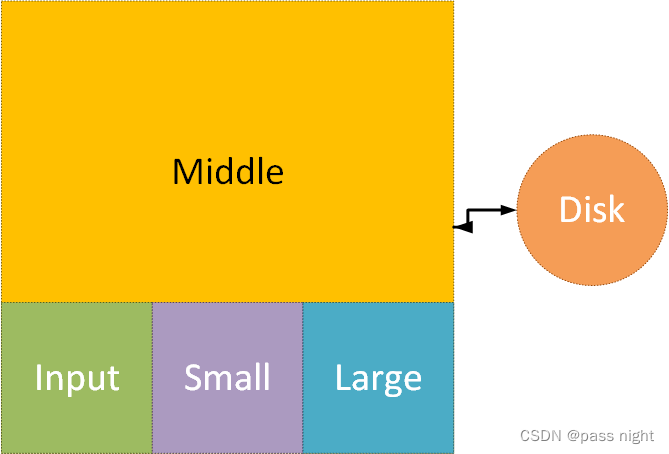

1. 將磁盤劃分為四個區域：middle, small, large, input
2. 當input為空時，從磁盤中讀取數據
3. 將游標存放在middle中，middle采用雙端堆進行存儲，可以以$\log (n)$的效率獲取最大最小值。 在本實驗中，因為數據可能重復的緣故，所以使用了stl中自帶的優先隊列進行實現，而非使用更高效的平衡二叉樹實現
4. 先從磁盤中讀取數據，填充Middle
5. 不斷從input中讀取數據，與游標進行比較，較大值放入Large，較小值放入Small；當輸出緩存滿時寫入磁盤兩側
6. 遞歸磁盤較大組合較小組

算法實現

緩存類

struct Cache
{int *cache;int capacity;// the start position of the cache in disk// when the cache is empty, startPosition = endPosition = 0int diskStartPosition;int diskEndPosition;// when Cache is not filled, endPosition - startPosition != capacityint startPosition;int endPosition;int size;
};

1. 聲明緩存類管理緩存，同時保存部分相關數據；但因為數組位置信息保存在數組類當中，所以不提供讀寫操作

Middle Cache的實現

雙端堆的實現

template <class T>
class DoubleEndPriorityQueue
{friend class DoubleEndPriorityQueueCache;//升序隊列priority_queue<int, vector<int>, greater<int>> *acc;//降序隊列priority_queue<int, vector<int>, less<int>> *desc;public:int size(){return acc->size();}bool isEmpty(){return desc->empty();}void insert(int x){acc->push(x);desc->push(x);}int getMin(){return acc->top();}int getMax(){return desc->top();}void deleteMin(){int min = acc->top();bool flag = false;acc->pop();priority_queue<int, vector<int>, less<int>> *temp = new priority_queue<int, vector<int>, less<int>>();while (!desc->empty()){if (desc->top() != min){temp->push(desc->top());desc->pop();}else{if (!flag){flag = true;desc->pop();}else{temp->push(desc->top());desc->pop();}}}delete desc;desc = temp;}void deleteMax(){int i = desc->top();bool flag = false;desc->pop();priority_queue<int, vector<int>, greater<int>> *temp = new priority_queue<int, vector<int>, greater<int>>();while (!acc->empty()){if (acc->top() != i){temp->push(acc->top());acc->pop();}else{if (!flag){flag = true;acc->pop();}else{temp->push(acc->top());acc->pop();}}}delete acc;acc = temp;}DoubleEndPriorityQueue(){acc = new priority_queue<int, vector<int>, greater<int>>();desc = new priority_queue<int, vector<int>, less<int>>();}DoubleEndPriorityQueue(const DoubleEndPriorityQueue<T> &right){acc = right.acc;desc = right.desc;}
};

1. 為了節約時間，并沒有自己手動實現一個雙端堆
2. 因為系統包括網上大多數紅黑樹及AVL樹的實現都不允許數據重復，所以實驗中使用了stl中的堆進行組合

數組類的實現

class ExternalArray
{friend class ExternalArrayTest;private:int length = 0;Cache inputCache;Cache smallCache;Cache largeCache;// the cache range is [startPosition, endPosition) and start from 0//  when smallCache is swapped into disk, the replaced data in disk is store in here//  and when tempCache is not dealt with, the input will input from here firstCache tempCache;DoubleEndPriorityQueueCache middleCache;fstream fio;string filePath;size_t diskIOCount = 0;
};

1. 數組類包含對應的各個緩存
2. 使用fstream進行文件操作
3. 使用diskIOCount計算磁盤IO數量

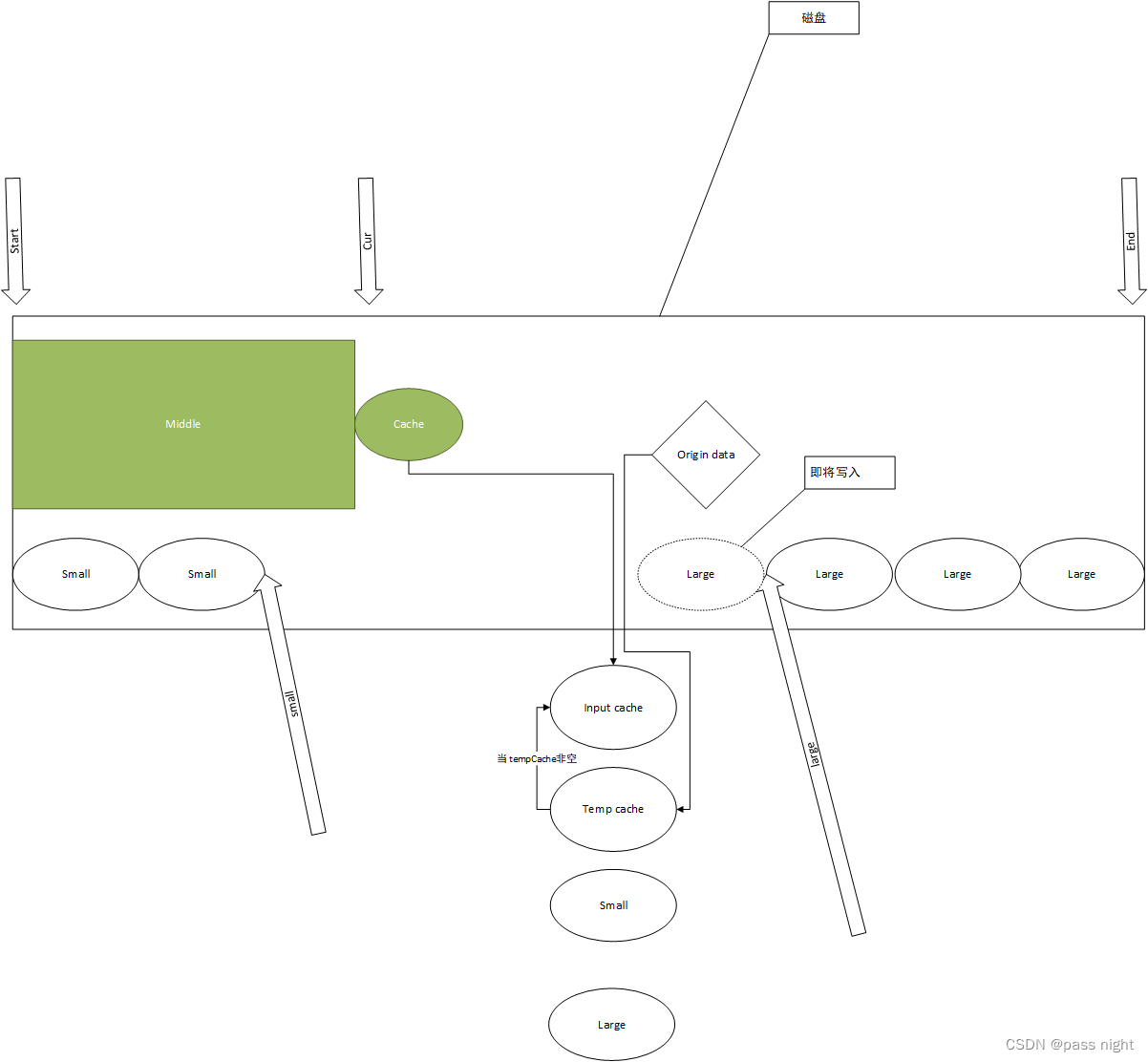

算法思路

快速排序的基本思想？

1. 將分段最左邊讀入游標緩存：將分段最左側讀入游標緩存，若分段小于游標緩存，則直接寫回。否則進行下一步。
2. 創建游標（cur），遍歷分段：游標不斷右移，進行分片，直到游標到達end
3. Small cache 寫滿：游標不斷右移，所以不會出現覆蓋的情況，若寫滿則直接寫回
4. Large cache寫滿：
   1. 寫回
   2. 看情況保存被覆蓋的磁盤數據（當游標到寫回位置的距離小于large cache 的容量）移動end位置
5. 完成遍歷后：
   1. 將temp cache 中的所有數據處理
   2. 將三個cache中的所有數據寫回
   3. 遞歸余下兩個分段

緩存操作函數

寫緩存：

    // write to diskvoid writeCache(Cache &cache, int diskStartPosition, int startPosition, int endPosition, bool sequencial = true){cache.diskStartPosition = diskStartPosition;fio.seekp(diskStartPosition * 13, ios::beg);for (int i = startPosition; i < cache.size; i++){fio.write(formateInt(cache[i]).append(" ").c_str(), 13);}cache.diskEndPosition = diskStartPosition + cache.size;fio.seekp(-1, ios::end);fio << NULL;fio.clear();if (!sequencial){cache.diskEndPosition = -1;cache.diskStartPosition = -1;}diskIOCount++;}void writeCache(DoubleEndPriorityQueueCache &cache, int diskStartPosition){cache.diskStartPosition = diskStartPosition;int count = 0;fio.seekp(diskStartPosition * 13, ios::beg);while (!cache.empty()){fio.write(formateInt(cache.popMin()).append(" ").c_str(), 13);count++;}cache.diskEndPosition = diskStartPosition + count;fio.seekp(-1, ios::end);fio << NULL;fio.clear();diskIOCount++;}

讀緩存：

    // basic read method// read from disk// if the disk is empty or shorter than cache, then fill with zero// the append parameter is used to determine whether the cache is appended to the old data// when read from disk, the status flag(those position) is automatically set// return count number of dataint readCache(Cache &cache, int start, int end, int diskStartPosition, bool append = false, bool sequencial = true){fio.seekg(diskStartPosition * 13, ios::beg);int i = start, count = 0;if (!append)cache.size = 0;for (; i < end && fio.peek() != EOF; i++, count++){fio >> cache[i];cache.size++;}if (append){// cache.cacheStartPosition is equal to old onecache.endPosition += count;// cache.diskStartPosition is equal to old onecache.diskEndPosition += count;}else{cache.startPosition = start;cache.endPosition = start + count;cache.diskStartPosition = diskStartPosition;cache.diskEndPosition = diskStartPosition + count;}for (; i < end; i++)cache[i] = 0;if (!sequencial){cache.diskEndPosition = -1;cache.diskStartPosition = -1;}fio.clear();diskIOCount++;return count;}void readCache(DoubleEndPriorityQueueCache &cache, int diskStartPosition, int length){cache.diskStartPosition = diskStartPosition;fio.seekg(diskStartPosition * 13, ios::beg);int t, i;for (i = 0; i < length && fio.peek() != EOF; i++){fio >> t;cache.insert(t);}cache.diskEndPosition = diskStartPosition + i;fio.clear();diskIOCount++;}

按完成率怎么排序？當tempCache非空時，優先讀取tempCache中的數據：

    // start from pos, and fill input cache//  is the tempCache is not empty(or valid), then the input will be read from tempCache firstvoid readInputCache(int pos, int length){if (length > inputCache.capacity){cout << "invalid parameter" << endl;exit(0);}if (tempCache.size == 0)readCache(inputCache, 0, length, pos, false);else{int i = 0;inputCache.size = 0;inputCache.startPosition = 0;inputCache.endPosition = 0;for (; i < length && tempCache.size > 0; i++, tempCache.size--){inputCache[i] = tempCache[i];tempCache.endPosition--;inputCache.size++;inputCache.endPosition++;}if (inputCache.size < length)readCache(inputCache, i, length, pos, true, false);inputCache.diskStartPosition = -1;inputCache.diskEndPosition = -1;tempCache.startPosition = -1;tempCache.endPosition = -1;}}void readTempCache(int pos, int length){readCache(tempCache, tempCache.endPosition, tempCache.endPosition + length, pos, true, false);}

封裝后的操作：

    // add a new element to the end of the output cache, if output cache then write to disk// if head == true, then write from head, else write from tail// in fact head == true means the element is added from the small cache// if head == false, then the element is added from the large cachebool add(Cache &cache, int x, bool head, int &diskStartPosition, int &currentDiskEndPosition){bool willMiss = false;if (cache.size < cache.capacity){cache[cache.endPosition] = x;cache.endPosition++;cache.size++;}else{if (head){writeCache(cache, diskStartPosition, 0, cache.capacity, false);diskStartPosition += cache.capacity;}else{if (diskStartPosition - cache.capacity > currentDiskEndPosition){readTempCache(diskStartPosition - cache.capacity, cache.capacity);writeCache(cache, diskStartPosition - cache.capacity, 0, cache.capacity, false);diskStartPosition -= cache.capacity;willMiss = true;}else{readTempCache(currentDiskEndPosition + 1, diskStartPosition - currentDiskEndPosition - 1);writeCache(cache, diskStartPosition - cache.capacity, 0, cache.capacity, false);diskStartPosition -= cache.capacity;}}cache.startPosition = 0;cache.endPosition = 1;cache[0] = x;cache.size = 1;}return willMiss;}

快排實現

1. 在有了上述代理之后，便可以利用普通快排的思想進行排序
2. 其中注意排序后要清空緩存

    // the array is start from start and end to end in diskvoid quickSort(int start, int end){// point to current position in diskint cur = start;// initializationreadCache(middleCache, start, min(middleCache.capacity, end - start));cur += middleCache.size();// point to the location in disk where the small cache should be writtenint small = start;// point to the location in disk where the large cache should be writtenint large = end;int willMiss = 0;//開始處理while (cur < large || willMiss > 0){if (willMiss > 0){cur -= min(inputCache.size, tempCache.size);willMiss--;}readInputCache(cur, min(large - cur, inputCache.capacity));for (int i = inputCache.startPosition; i < inputCache.endPosition; i++){int record = inputCache[i];if (record <= middleCache.getMin())add(smallCache, record, true, small, cur);else if (record >= middleCache.getMax()){if (add(largeCache, record, false, large, cur))willMiss++;}else{add(smallCache, middleCache.popMin(), true, small, cur);middleCache.insert(record);}cur++;if (cur >= large)break;}}for (int i = 0; tempCache.size > 0; i++, tempCache.size--){int record = tempCache[i];if (record <= middleCache.getMin())add(smallCache, record, true, small, cur);else if (record >= middleCache.getMax())add(largeCache, record, false, large, cur);else{add(smallCache, middleCache.popMin(), true, small, cur);middleCache.insert(record);}cur++;tempCache.endPosition--;}writeCache(smallCache, small, 0, smallCache.size, false);writeCache(middleCache, small + smallCache.size);writeCache(largeCache, large - largeCache.size, 0, largeCache.size, false);smallCache.size = 0;smallCache.startPosition = 0;smallCache.endPosition = 0;largeCache.size = 0;largeCache.startPosition = 0;largeCache.endPosition = 0;int a = middleCache.diskStartPosition;if (a - start > 1)quickSort(start, a);int b = middleCache.diskEndPosition;if (end - b > 1)quickSort(b, end);}

實驗結果與分析

測試類

class ExternalArrayTest
{
public:// test double end priority queuevoid test0(){srand(time(NULL));ExternalArray a(10, 10, 10, 2000);for (int i = 0; i < 2000; i++){a.middleCache.insert(rand() % 10000);}a.writeCache(a.middleCache, 0);cout << "isAccendent = " << a.isAccendent() << endl;}// test constructorvoid test1(){ExternalArray a(10);a.addRandomNumber(1000);}// test readCache()void test2(){ExternalArray a(10);a.addRandomNumber(1000);a.readInputCache(0, a.inputCache.capacity);for (int i = 0; i < 10; i++){cout << a.inputCache[i] << " ";}a.readInputCache(990, a.inputCache.capacity);cout << endl;for (int i = 0; i < 10; i++){cout << a.inputCache[i] << " ";}}void test3(){ExternalArray a(10, 10, 10, 20);a.addRandomNumber(5);a.readCache(a.middleCache, 0, 10);a.middleCache.print();a.readCache(a.inputCache, 0, 10, 0, false);a.inputCache.print();a.addRandomNumber(95);a.readCache(a.middleCache, 0, 10);a.middleCache.print();a.readCache(a.inputCache, 0, 10, 0, false);a.inputCache.print();}// test writeCache()void test4(){ExternalArray a(10, 10, 10, 20);a.addRandomNumber(100);a.middleCache.insert(0);a.middleCache.insert(1);a.middleCache.insert(2);a.writeCache(a.middleCache, 0);a.inputCache[0] = 9;a.inputCache[1] = 99;a.inputCache[2] = 999;a.writeCache(a.inputCache, 3, 0, 3);}void test5(){ExternalArray a(10, 10, 10, 20);a.addRandomNumber(100);a.readCache(a.middleCache, 0, 10);a.middleCache.print();a.readCache(a.inputCache, 0, 10, 0, false);a.inputCache.print();}//足夠大的內存int test6(){ExternalArray a(10, 10, 10, 10000);a.addRandomNumber(10000);a.quickSort();return a.isAccendent();}int test7(){ExternalArray a(10, 10, 10, 80);a.addRandomNumber(100);a.quickSort();return a.isAccendent();}//恰好夠大的內存int test8(){ExternalArray a(10, 10, 10, 80);a.addRandomNumber(100);a.quickSort();return a.isAccendent();}//不夠大的內存int test9(){ExternalArray a(100, 100, 100, 300);a.addRandomNumber(1000);a.quickSort();return a.isAccendent();}//大量數據int test10(){ExternalArray a(2500, 2500, 2500, 30000);a.addRandomNumber(100000);a.quickSort();return a.isAccendent();}//非常大量數據int test11(){ExternalArray a(2500, 2500, 2500, 30000);a.addRandomNumber(1000000);a.quickSort();return a.isAccendent();}void runTest(){if (test6() == -1)cout << "test6 pass" << endl;if (test7() == -1)cout << "test7 pass" << endl;if (test8() == -1)cout << "test8 pass" << endl;if (test9() == -1)cout << "test9 pass" << endl;if (test10() == -1)cout << "test10 pass" << endl;}void experience_diskIO(){for (int length = 1000; length < 3000; length += 500){for (int inputCacheSize = 100; inputCacheSize < 400; inputCacheSize += 100){for (int middleCacheSize = 300; middleCacheSize < 600; middleCacheSize += 100){for (int largeCacheSize = 500; largeCacheSize < 1000; largeCacheSize += 100){ExternalArray a(inputCacheSize, inputCacheSize, inputCacheSize, middleCacheSize);a.addRandomNumber(length);a.quickSort();if (a.isAccendent() == -1){cout << "length = " << length << " input and output cache size = " << inputCacheSize << "; middleCacheSize = " << middleCacheSize << " diskIOCount = " << a.diskIOCount << endl;}}}}}}void experience_time(){for (int length = 1000; length < 3000; length += 500){for (int inputCacheSize = 100; inputCacheSize < 400; inputCacheSize += 100){for (int middleCacheSize = 300; middleCacheSize < 600; middleCacheSize += 100){for (int largeCacheSize = 500; largeCacheSize < 1000; largeCacheSize += 100){ExternalArray a(inputCacheSize, inputCacheSize, inputCacheSize, middleCacheSize);a.addRandomNumber(length);clock_t start = clock();a.quickSort();clock_t end = clock();cout << "length = " << length << " input and output cache size = " << inputCacheSize << "; middleCacheSize = " << middleCacheSize << " time = " << (double)(end - start) / CLOCKS_PER_SEC << endl;}}}}}
};

實驗結果

正確性分析

快速排序在所有排序方法中速度最快，

實驗結果

實驗分析

? 在本次實驗中，為了盡量地分析緩存大小對排序效率的影響，所有的緩存都可以進行獨立配置。其大小如下

• inputCache: inputCacheCapacity
• smallCache: smallCacheCapacity
• largeCache: largeCacheCapacity
• tempCache: smallCacheCapacity + largeCacheCapacity

? 以上緩存是直接使用的內存空間，同時還有遞歸帶來的棧空間消耗O(length)

? 所以總的內存消耗為：inputCacheCapacity+2(smallCacheCapacity+largeCacheCapacity) + O(length)

? 而運行時間瓶頸不再CPU上，而在磁盤io上，因此通過計算磁盤io的訪問次數來大致預測時間復雜度。磁盤io次數分析如下

• 當middleCache可以容納所有的數據時：1
• 當所有輸出cache和middleCache的總和能容納所有數據時：3
• 當cache無法容納所有數據（）：

平均情況：共發生了log(n)次遞歸，每段遞歸段的大小為length/log(n)

對于長度為length的數組字段：在平均情況下，數組大小成均勻分布，寫入smallCache和largeCache的概率相等,而每一次遞歸固定讀取一次middleCache。

• 此時若outputCache大小若大于inputCache，當outputCache未填滿時，inputCache從磁盤中讀取數據，次數為$\frac{2\times inputCacheCapacity}{smallCacheCapacity+largeCacheCapacity}$,接下來，平均下來每次outputCache寫入時都會將文件臨時存到內存，此時無需inputCache從磁盤中讀取文件，訪問總次數為：$2\frac{length?(smallCacheCapacity+largeCacheCapacity)?middleCacheCapacity}{smallCacheCapacity+largeCacheCapacity}$所以總次數為：

$$\begin{gathered} \frac{2\times inputCacheCapacity}{smallCacheCapacity+largeCacheCapacity} \\ +2\frac{length?(smallCacheCapacity+largeCacheCapacity)?middleCacheCapacity}{smallCacheCapacity+largeCacheCapacity} \end{gathered}$$

• 若outputCache小于inputCache,盡管outputCache在寫入的時候會將磁盤中同位置的文件讀到緩存，但是大小并不足以inputCache讀取，inputCache依然要讀取緩存，此時磁盤io數為：
  $$\begin{gathered} 2\frac{length?middleCacheCapacity}{smallCacheCapacity+largeCacheCapacity} \\ +\frac{length?middleCacheCapacity}{inputCacheCapacity} \end{gathered}$$
  此時發生發生的總磁盤iO數為
  $$\begin{gathered} (\frac{2\times inputCacheCapacity}{smallCacheCapacity+largeCacheCapacity} \\ +2\frac{\frac{length}{\log (length)}?(smallCacheCapacity+largeCacheCapacity)?middleCacheCapacity}{smallCacheCapacity+largeCacheCapacity}) \\ \times \log (length) \end{gathered}$$
  或
  $$\begin{gathered} (2\frac{\frac{length}{\log (length)}?middleCacheCapacity}{smallCacheCapacity+largeCacheCapacity} \\ +\frac{\frac{length}{\log (length)}?middleCacheCapacity}{inputCacheCapacity}) \\ \times \log (length) \end{gathered}$$

  而對于最壞情況 ，每一次遞歸都將所有的數據進行一次移動，此時發生lenght次遞歸，每次遞歸長度為length

  而磁盤io次數分析同上 （盡管是這樣分析，但實際情況在這種極端情況下，很有可能總是往一個緩存中寫入），公式如下：

$$\begin{gathered} (\frac{2\times inputCacheCapacity}{smallCacheCapacity+largeCacheCapacity} \\ +2\frac{length?(smallCacheCapacity+largeCacheCapacity)?middleCacheCapacity}{smallCacheCapacity+largeCacheCapacity}) \\ \times length \end{gathered}$$

或
$$(2\frac{length?middleCacheCapacity}{smallCacheCapacity+largeCacheCapacity}+\frac{length?middleCacheCapacity}{inputCacheCapacity})\times length$$
